Utility CAD Parts

Selected DungenLabs utility parts showing fit constraints, printable geometry and practical CAD problem solving.

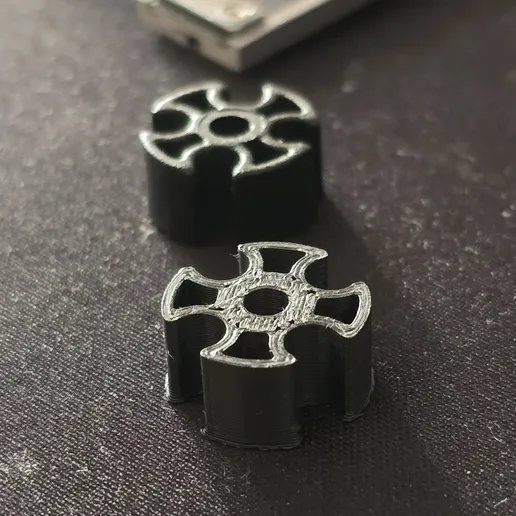

Printed PTFE tube aligner parts for a QIDI Box filament path CAD / CAMUtility CAD Parts
DL CAD workA selected set of DungenLabs utility part studies. These examples show compact CAD workflows for printer accessories, airflow routing, power-switch protection and clamp mechanics, with geometry shaped around real-world fit, support strategy and FDM printability.CADFDMFixturesDL Work
QIDI Plus 4 exhaust elbow adapter CAD render QIDI Plus 4 exhaust elbow adapter CAD render

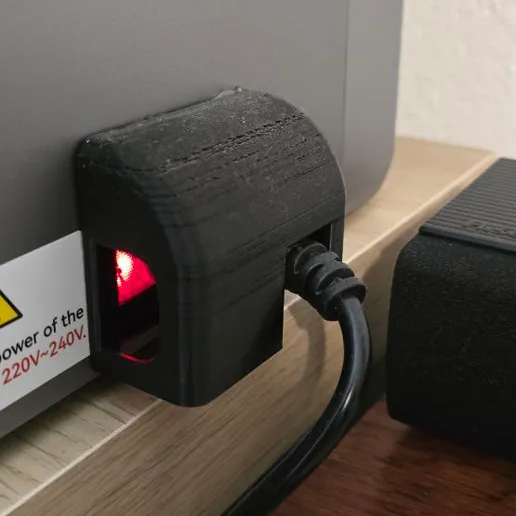

QIDI Plus 4 resin splash shield installed on the power switch QIDI Plus 4 resin splash shield installed on the power switch

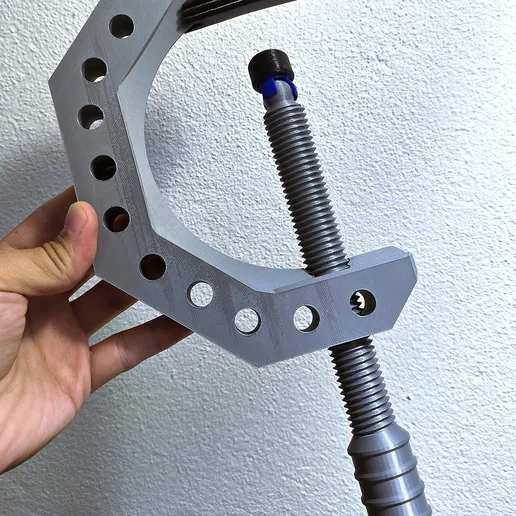

Printed ADAPTUS clamp prototype with threaded pressure screw Printed ADAPTUS clamp prototype with threaded pressure screw
BackCAD / CAMMore work in this category.

At a glance

Project facts.

SourceSelected DungenLabs utility CAD studies
FocusFit, airflow, protection and clamp mechanics
OutputPrintable utility parts prepared for practical FDM workflows
